PRECISION DC CORELESS MOTOR

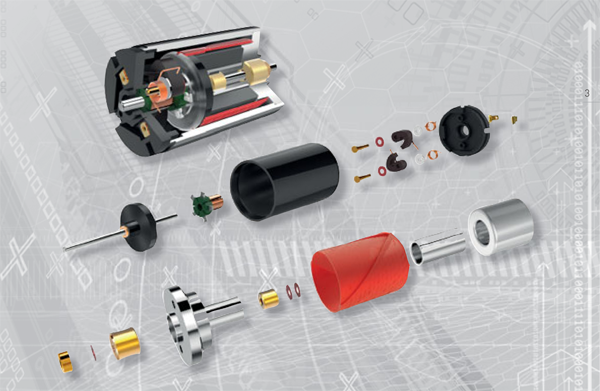

Coreless windings are utilized in our precision DC coreless motors (Micromotors). Due to an integrated structure consisting of a symmetrical winding, commutator and motor shaft, these motors run very smoothly and stably without any vibration. The motors are characterized by:

low inertia
rapid acceleration
high efficiency
no cogging and linear output performance

They have excellent speed regulation and servo performance. High performance Nd-Fe-B magnets are used, and the product is compact in size. The motor with precious metal commutation is used in low power applications, whereas carbon-brush commutation is used in higher power applications with long operational lifetime. The product is typically used for precision drives in medical equipment and devices, healthcare products, robotics, automotive, and industrial automation.

Typical applications

Precision drives in medical, healthcare, robotics, automobile and industrial automation fields, nail gun, etc.

Downloads

PDFs, Catalogues

PRECISION DC CORELESS MOTOR

Coreless windings are utilized in our precision DC coreless motors (Micromotors). Due to an integrated structure consisting of a symmetrical winding, commutator and motor shaft, these motors run very smoothly and stably without any vibration. The motors are characterized by:

low inertia
rapid acceleration
high efficiency
no cogging and linear output performance

They have excellent speed regulation and servo performance. High performance Nd-Fe-B magnets are used, and the product is compact in size. The motor with precious metal commutation is used in low power applications, whereas carbon-brush commutation is used in higher power applications with long operational lifetime. The product is typically used for precision drives in medical equipment and devices, healthcare products, robotics, automotive, and industrial automation.

Typical applications

Precision drives in medical, healthcare, robotics, automobile and industrial automation fields, nail gun, etc.

Downloads

PDFs, Catalogues

Technical Data

Sr. No.	Motor No.	Dia x Length (max)	Max. Power	Page
1	0615N5M	6.00 x 15.00 mm	0.25 W	4
2	0816N5M	8.00 x 16.20 mm	0.34 W	5
3	1020N5M	10.00 x 20.70 mm	0.60 W	6
4	1025N5M	10.00 x 24.00 mm	1.30 W	7
5	1220N5M2B	12.00 x 21.00 mm	2.30 W	8
6	1221N7M	12.00 x 21.00 mm	2.00 W	9
7	1230N5M	12.40 x 30.90 mm	3.40 W	10
8	1230N7M	12.40 x 30.70 mm	0.60 W	11
9	1331N5M	13.00 x 31.50 mm	1.13 W	12
10	1515N5M	15.00 x 15.20 mm	0.36 W	13
11	1620N5M	16.00 x 20.00 mm	1.30 W	14
12	1625N5M	16.00 x 25.20 mm	2.80 W	15
13	1625N9M	16.00 x 25.20 mm	2.70 W	16
14	1627N5M(1)	16.00 x 27.00 mm	4.45 W	17
15	1627N5M(2)	16.00 x 27.00 mm	1.72 W	18
16	1630N5M2B	16.00 x 30.00 mm	2.82 W	19
17	1630N5M2B	19.00 x 25.00 mm	4.75 W	20
18	2224N5M2B	22.00 x 24.20 mm	4.00 W	21
19	2225N5M	22.00 x 25.30 mm	6.60 W	22
20	2232N5M	22.00 x 31.60 mm	8.00 W	23
21	2232N9M	22.00 x 31.60 mm	8.40 W	24
22	2233N5M2B	22.00 x 33.20 mm	5.00 W	25
23	2433N5M2B	24.00 x 32.80 mm	10.10 W	26
24	1625N5C	16.00 x 25.60 mm	2.60 W	27
25	1630N5C	16.00 x 29.60 mm	3.30 W	28
26	1735N5C2B	17.00 x 35.00 mm	6.60 W	29
27	2233N5C	22.00 x 33.70 mm	7.10 W	30
28	2543N9C2B	25.00 x 43.50 mm	22.70 W	31
29	2554N9C2B	25.00 x 53.30 mm	44.70 W	32
30	3068N9C2B	30.00 x 68.00 mm	215.00 W	33
31	3257N9C2B	32.00 x 57.00 mm	65.00 W	34

Technical Data

Motor No.	Dia mm	Length mm	Max. Power	Max. Voltage	Page
0615N5M	6.00 mm	15.00 mm	0.25 W	3.0 V	4
0816N5M	8.00 mm	16.20 mm	0.34 W	4.20 – 8.00 V	5
1020N5M	10.00 mm	20.70 mm	0.60 W	3.00 V	6
1025N5M	10.00 mm	24.00 mm	1.30 W	12.00 V	7
1220N5M2B	12.00 mm	21.00 mm	2.30 W	3.30 – 12.00 V	8
1230N5M	12.40 mm	30.90 mm	3.40 W	5.30 – 24.00 V	9
1230N7M	12.40 mm	30.70 mm	0.60 W	4.50 V	10
1331N5M	13.00 mm	31.50 mm	1.13 W	9.00 V	11
1515N5M	15.00 mm	15.20 mm	0.36 W	3.00 V	12
1620N5M	16.00 mm	20.00 mm	1.30 W	5.00 V	13
1625N5M	16.00 mm	25.20 mm	2.80 W	3.70 – 12.00 V	14
1627N5M(1)	16.00 mm	27.00 mm	4.45 W	4.50 – 12.00 V	15
1627N5M(2)	16.00 mm	27.00 mm	1.72 W	24.00 V	16
1630N5M2B	16.00 mm	30.00 mm	2.82 W	6.00 – 12.00 V	17
2224N5M2B	22.00 mm	24.20 mm	4.00 W	6.00 V	18
2225N5M	22.00 mm	25.30 mm	6.60 W	7.20 V	19
2232N5M	22.00 mm	31.60 mm	8.00 W	6.00 – 24.00 V	20
2232N9M	22.00 mm	31.60 mm	8.40 W	24.00 V	21
2233N5M2B	22.00 mm	33.20 mm	5.00 W	3.00 V	22
2433N5M2B	24.00 mm	32.80 mm	10.10 W	4.50 V	23
1625N5C	16.00 mm	25.60 mm	2.60 W	12.00 V	24
1630N5C	16.00 mm	29.60 mm	3.30 W	24.00 V	25
1735N5C2B	17.00 mm	35.00 mm	6.60 W	12.00 V	26
2233N5C	22.00 mm	33.70 mm	7.10 W	24.00 V	27
2543N9C2B	25.00 mm	43.50 mm	22.70 W	24.00 V	28
2554N9C2B	25.00 mm	53.30 mm	44.70 W	24.00 V	29
3068N9C2B	30.00 mm	68.00 mm	215.00 W	24.00 – 36.00 V	30
3257N9C2B	32.00 mm	57.00 mm	65.00 W	24.00 V	31
1221N7M	12.00 mm	21.00 mm	2.00 W	12.00 V
1625N9M	16.00 mm	25.00 mm	2.70 W	12.00 V
1925N9M	19.00 mm	25.20 mm	4.75 W	24.00 V

Technical Data

Sr. No.	Motor No.	Dia x Length (max)	Max. Power	Page
1	0615N5M	6.00 x 15.00 mm	0.25 W	4
2	0816N5M	8.00 x 16.20 mm	0.34 W	5
3	1020N5M	10.00 x 20.70 mm	0.60 W	6
4	1025N5M	10.00 x 24.00 mm	1.30 W	7
5	1220N5M2B	12.00 x 21.00 mm	2.30 W	8
6	1221N7M	12.00 x 21.00 mm	2.00 W	9
7	1230N5M	12.40 x 30.90 mm	3.40 W	10
8	1230N7M	12.40 x 30.70 mm	0.60 W	11
9	1331N5M	13.00 x 31.50 mm	1.13 W	12
10	1515N5M	15.00 x 15.20 mm	0.36 W	13
11	1620N5M	16.00 x 20.00 mm	1.30 W	14
12	1625N5M	16.00 x 25.20 mm	2.80 W	15
13	1625N9M	16.00 x 25.20 mm	2.70 W	16
14	1627N5M(1)	16.00 x 27.00 mm	4.45 W	17
15	1627N5M(2)	16.00 x 27.00 mm	1.72 W	18
16	1630N5M2B	16.00 x 30.00 mm	2.82 W	19
17	1630N5M2B	19.00 x 25.00 mm	4.75 W	20
18	2224N5M2B	22.00 x 24.20 mm	4.00 W	21
19	2225N5M	22.00 x 25.30 mm	6.60 W	22
20	2232N5M	22.00 x 31.60 mm	8.00 W	23
21	2232N9M	22.00 x 31.60 mm	8.40 W	24
22	2233N5M2B	22.00 x 33.20 mm	5.00 W	25
23	2433N5M2B	24.00 x 32.80 mm	10.10 W	26
24	1625N5C	16.00 x 25.60 mm	2.60 W	27
25	1630N5C	16.00 x 29.60 mm	3.30 W	28
26	1735N5C2B	17.00 x 35.00 mm	6.60 W	29
27	2233N5C	22.00 x 33.70 mm	7.10 W	30
28	2543N9C2B	25.00 x 43.50 mm	22.70 W	31
29	2554N9C2B	25.00 x 53.30 mm	44.70 W	32
30	3068N9C2B	30.00 x 68.00 mm	215.00 W	33
31	3257N9C2B	32.00 x 57.00 mm	65.00 W	34

Technical Data

Motor No.	Dia mm	Length mm	Max. Power	Max. Voltage	Page
0615N5M	6.00 mm	15.00 mm	0.25 W	3.0 V	4
0816N5M	8.00 mm	16.20 mm	0.34 W	4.20 – 8.00 V	5
1020N5M	10.00 mm	20.70 mm	0.60 W	3.00 V	6
1025N5M	10.00 mm	24.00 mm	1.30 W	12.00 V	7
1220N5M2B	12.00 mm	21.00 mm	2.30 W	3.30 – 12.00 V	8
1230N5M	12.40 mm	30.90 mm	3.40 W	5.30 – 24.00 V	9
1230N7M	12.40 mm	30.70 mm	0.60 W	4.50 V	10
1331N5M	13.00 mm	31.50 mm	1.13 W	9.00 V	11
1515N5M	15.00 mm	15.20 mm	0.36 W	3.00 V	12
1620N5M	16.00 mm	20.00 mm	1.30 W	5.00 V	13
1625N5M	16.00 mm	25.20 mm	2.80 W	3.70 – 12.00 V	14
1627N5M(1)	16.00 mm	27.00 mm	4.45 W	4.50 – 12.00 V	15
1627N5M(2)	16.00 mm	27.00 mm	1.72 W	24.00 V	16
1630N5M2B	16.00 mm	30.00 mm	2.82 W	6.00 – 12.00 V	17
2224N5M2B	22.00 mm	24.20 mm	4.00 W	6.00 V	18
2225N5M	22.00 mm	25.30 mm	6.60 W	7.20 V	19
2232N5M	22.00 mm	31.60 mm	8.00 W	6.00 – 24.00 V	20
2232N9M	22.00 mm	31.60 mm	8.40 W	24.00 V	21
2233N5M2B	22.00 mm	33.20 mm	5.00 W	3.00 V	22
2433N5M2B	24.00 mm	32.80 mm	10.10 W	4.50 V	23
1625N5C	16.00 mm	25.60 mm	2.60 W	12.00 V	24
1630N5C	16.00 mm	29.60 mm	3.30 W	24.00 V	25
1735N5C2B	17.00 mm	35.00 mm	6.60 W	12.00 V	26
2233N5C	22.00 mm	33.70 mm	7.10 W	24.00 V	27
2543N9C2B	25.00 mm	43.50 mm	22.70 W	24.00 V	28
2554N9C2B	25.00 mm	53.30 mm	44.70 W	24.00 V	29
3068N9C2B	30.00 mm	68.00 mm	215.00 W	24.00 – 36.00 V	30
3257N9C2B	32.00 mm	57.00 mm	65.00 W	24.00 V	31
1221N7M	12.00 mm	21.00 mm	2.00 W	12.00 V
1625N9M	16.00 mm	25.00 mm	2.70 W	12.00 V
1925N9M	19.00 mm	25.20 mm	4.75 W	24.00 V
