DC CORE MOTOR

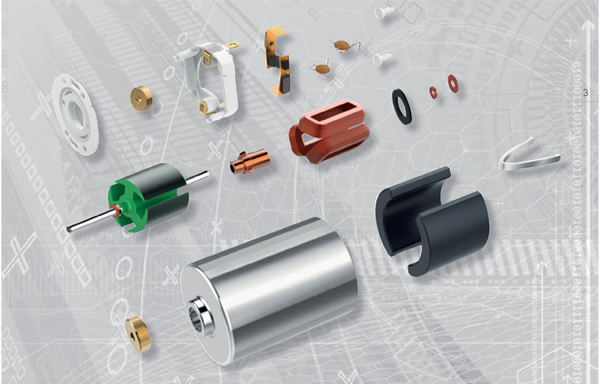

As the name implies, this motor contains an iron core over which the winding is made. The product features stable and reliable performance. For heavy load applications requiring long operational life, a carbon brush structure is available. The drive motor series are widely used in applications of security equipment, small electronic products, remote control model aircraft, personal care products, and portable
electric tools. The motor is also available in a vibration series which are widely used in communication devices and healthcare equipment.
Typical applications
Automotive products, breast pumps, power tools, mini electronic products, portable tools, security equipment, remote control aerocrafts, personal care products, etc.
DC CORE MOTOR
As the name implies, this motor contains an iron core over which the winding is made. The product features stable and reliable performance. For heavy load applications requiring long operational life, a carbon brush structure is available. The drive motor series are widely used in applications of security equipment, small electronic products, remote control model aircraft, personal care products, and portable
electric tools. The motor is also available in a vibration series which are widely used in communication devices and healthcare equipment.
Typical applications
Automotive products, breast pumps, power tools, mini electronic products, portable tools, security equipment, remote control aerocrafts, personal care products, etc.
Technical Data
| Sr. No. | Motor No. | Dia x Length (max) in mm | Max. Power | Page |
|---|---|---|---|---|
| 1 | C1012F43 | 10.00 x 12.60 mm | 0.84 W | 4 |
| 2 | C1015F13 | 10.00 x 15.00 mm | 0.32 W | 5 |
| 3 | C1212F13 | 12.00 x 12.20 mm | 0.45 W | 6 |
| 4 | C1215F13 | 12.00 x 15.10 mm | 1.18 W | 7 |
| 5 | C1220F35 | 12.00 x 20.60 mm | 0.94 W | 8 |
| 6 | C1627F34H | 15.50 x 26.40 mm | 0.85 W | 9 |
| 7 | C1718R14 | 17.00 x 17.80 mm | 1.01 W | 10 |
| 8 | C1723R14 | 17.00 x 22.80 mm | 1.48 W | 11 |
| 9 | C2430R23 | 24.40 x 30.80 mm | 0.43 W | 12 |
| 10 | C2032F41 | 20.30 x 32.00 mm | 2.10 W | 13 |
| 11 | C2838R | 27.50 x 37.65 mm | 19.03 W | 14 |
Technical Data
| Sr. No. | Motor No. | Dia x Length (max) in mm | Max. Power | Page |
|---|---|---|---|---|
| 1 | C1012F43 | 10.00 x 12.60 mm | 0.84 W | 4 |
| 2 | C1015F13 | 10.00 x 15.00 mm | 0.32 W | 5 |
| 3 | C1212F13 | 12.00 x 12.20 mm | 0.45 W | 6 |
| 4 | C1215F13 | 12.00 x 15.10 mm | 1.18 W | 7 |
| 5 | C1220F35 | 12.00 x 20.60 mm | 0.94 W | 8 |
| 6 | C1627F34H | 15.50 x 26.40 mm | 0.85 W | 9 |
| 7 | C1718R14 | 17.00 x 17.80 mm | 1.01 W | 10 |
| 8 | C1723R14 | 17.00 x 22.80 mm | 1.48 W | 11 |
| 9 | C2430R23 | 24.40 x 30.80 mm | 0.43 W | 12 |
| 10 | C2032F41 | 20.30 x 32.00 mm | 2.10 W | 13 |
| 11 | C2838R | 27.50 x 37.65 mm | 19.03 W | 14 |
Technical Data
| Motor No. | Dia mm | Length mm | Max. Power | Max. Voltage | Page |
| C1012F43 | 10.00 mm | 12.60 mm | 0.84 W | 4.5 V | 4 |
| C1015F13 | 10.00 mm | 15.00 mm | 0.32 W | 1.5 V | 5 |
| C1212F13 | 12.00 mm | 12.20 mm | 0.45 W | 4.2 V | 6 |
| C1215F13 | 12.00 mm | 15.10 mm | 1.18 W | 3.5 V | 7 |
| C1220F35 | 12.00 mm | 20.60 mm | 0.94 W | 6.0 V | 8 |
| C1627F34H | 15.50 mm | 26.40 mm | 0.85 W | 6.0 V | 9 |
| C1718R14 | 17.00 mm | 17.80 mm | 1.01 W | 4.5 V | 10 |
| C1723R14 | 17.00 mm | 22.80 mm | 1.48 W | 4.5 V | 11 |
| C2430R23 | 24.40 mm | 30.80 mm | 0.43 W | 24.0 V | 12 |
| C2032F41 | 20.30 mm | 32.00 mm | 2.10 W | 6.0 V | 13 |
| C2838R | 27.50 mm | 37.65 mm | 19.03 W | 9.0 V | 14 |
